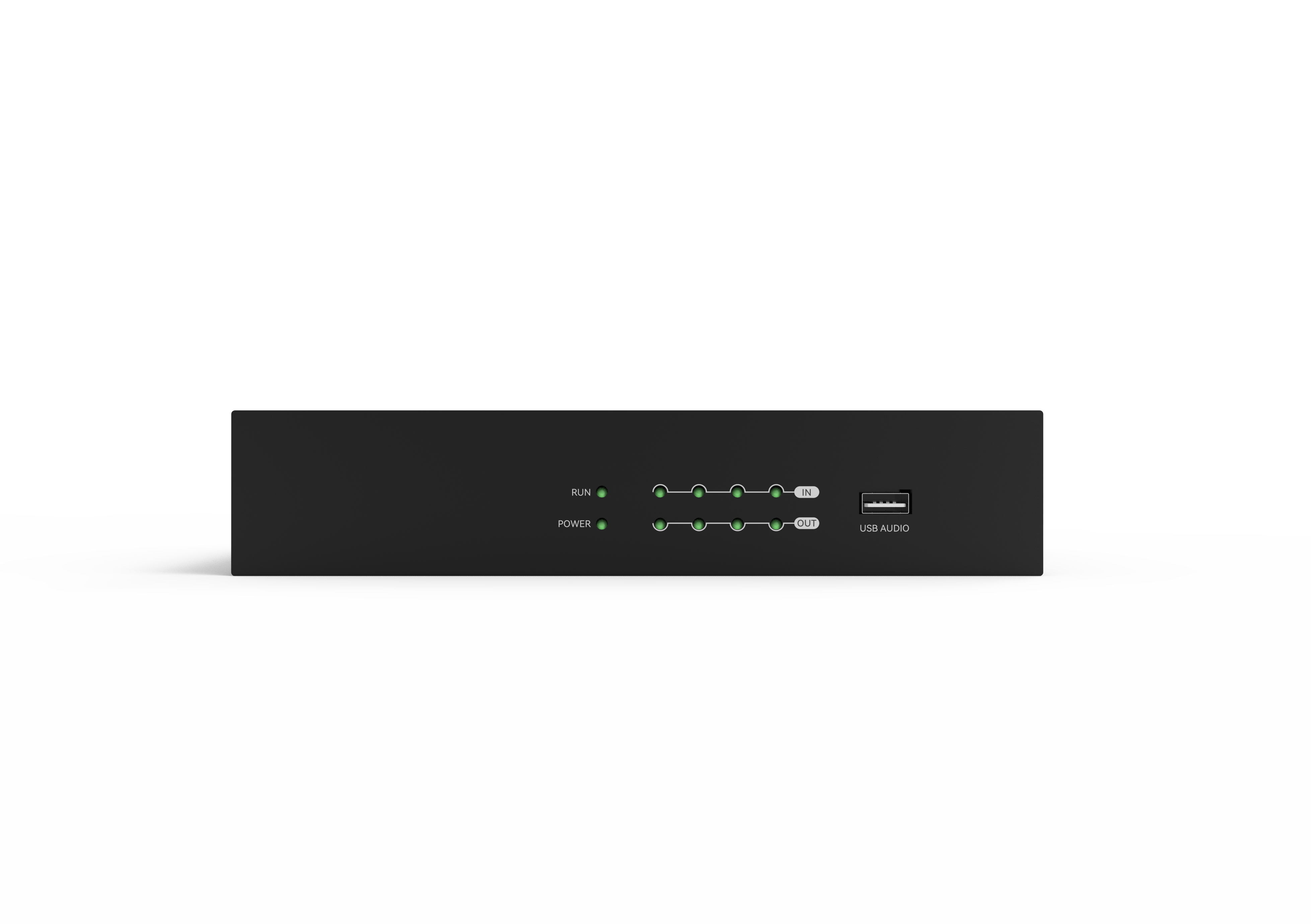

Audio DSP Matrix -- RSD0404
Overview:
RSD0404 is a versatile digital signal processor based on A-DSP Architecture with 40-bits floating point, capacity up to 400MIPS, 1600MFLOPS, 4 analog inputs and outputs, in-built USB audio channel, which can process both analog and digital signals.
It has great advantages on its core Algorithms which include AEC, AFS, ANS, AGC, and ANC.
Supports RS232, RS485 and UDP control, POE.
RSD0404 is a versatile digital signal processor based on A-DSP Architecture with 40-bits floating point, capacity up to 400MIPS, 1600MFLOPS, 4 analog inputs and outputs, in-built USB audio channel, which can process both analog and digital signals.
It has great advantages on its core Algorithms which include AEC, AFS, ANS, AGC, and ANC.
Supports RS232, RS485 and UDP control, POE.
-
4 Analog Inputs (48V Phantom Power)
-
4 Analog Outputs
-
In-built USB Audio Channel
-
Algorithms: AEC, AFS, ANS, AGC
-
RS232/ RS485 serial port
-
System configuration and control via Ethernet
-
16 Presets for recall
-
PoE or 12V power supply
-
Rack Mountable
